  • Performance:

    Voltage: 12V

    CCA: 500

    CA: 600

    BCI: 24

  • Capacity:

    @5 hrs: 67 AH

    @20 hrs: 6 AH

    @100 hrs: 84 AH

  • Dimensions:

    Lenght: 10.79in (274.00 mm)

    Width: 6.85in (174.00 mm)

    Height: 8.66in (220.00 mm)

    Weight: 54.00lb (24.49 kg)

  • Reserve Capacity::

    @25 amps: 137 min

    @56 amps: min

    @75 amps: min

Download Datasheet

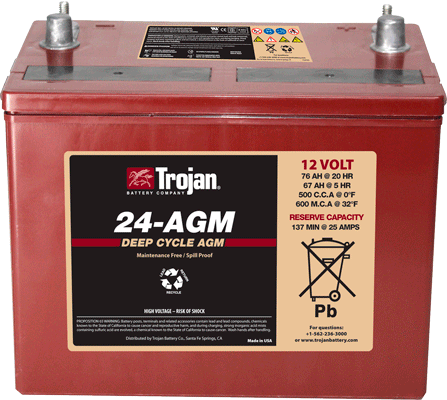

TROJAN BATTERY 24AGM 12V AGM - NATIONWIDE BATTERY

Applications:

TROJAN BATTERY 24-AGM

Deep-Cycle AGM Trojan Battery 24-AGM. (Applications as marine, industrial and special applications)

Trojan’s deep-cycle Absorbed Glass Mat (AGM) maintenance-free batteries feature a number of design elements to provide optimum performance. Robust plates and separators extend the life-cycle of Trojan’s deep-cycle 24-AGM AGM 12V batteries while a computer-generated grid design is optimized for high-power density. Trojan’s deep-cycle 24-AGM AGM batteries are low temperature tolerant, shock and vibration resistant and have a low internal resistance for higher discharge current and higher charging efficiency.
